DETAILS

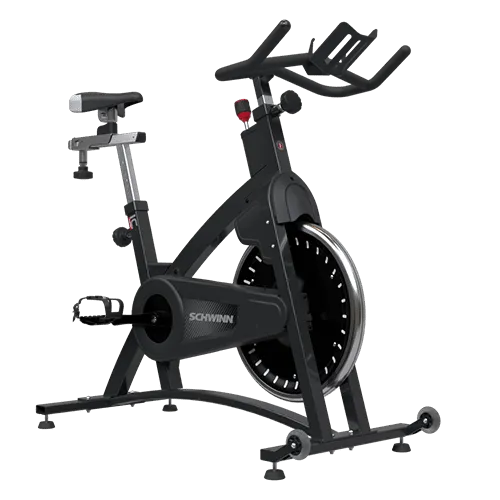

Powered by durability, our iconic IC Classic is unique in our portfolio of bikes. It features universally threaded pedal spindles to accommodate third-party outdoor pedal options, a real chain drive for cycling purists looking for outdoor authenticity and direct pressure resistance reminiscent of outdoor caliper brakes. Regarded for reliability and satisfaction, this is a bike facilities of all types can count on.
W: 20 IN (51 CM) L: 43.5 IN (110 CM) H: 46 IN (117 CM)
MAX PRODUCT LENGTH: 43.5 IN (110 CM)
MAX USER WEIGHT: 350 LBS (159 KG)
PRODUCT WEIGHT: 114 LBS (52 KG)
SHIPPING WEIGHT: 126 LBS (58 KG)
FEATURES
- Classic handlebar design with integrated water bottle holder and smart phone tablet mount
- Heavy Perimeter-Weighted Flywheel
- Direct Pressure Brake Resistance
- Chain drive using forged steel crank and ISIS oversized bottom bracket
- Narrow Q-Factor
- Optional Cadence Pro Console
- Trapezoidal seat adjustment
- Frame Finish – E-Coated & Powder Coated Steel
- Recommended User Height: 4’11” to 6’8″
The Schwinn IC Classic comes standard with the familiar classic flat pedals and cages to accommodate regular athletic shoes. The IC Classic is also compatible with the Schwinn Triple Link™ pedal upgrade. Triple Link Pedals accommodate Look Delta and SPD style cleats to simulate an outdoor riding experience. They also easily convert to accept traditional athletic shoes with the snap-in locking toe clips.
FLYWHEEL AND RESISTANCE
Heavy perimeter-weighted flywheel with direct pressure brake
THE POWER OFMETRICS

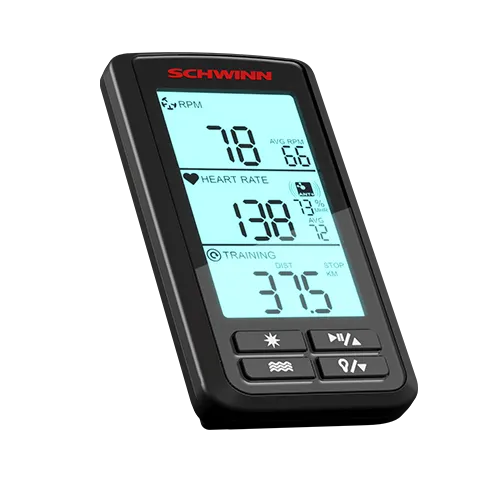

Add a variety of basic rider feedback tools — time, distance, calories and RPM — to your ride with the Cadence Pro. This console brings motivation and measurement to the group cycling studio with a compact display that is easy to use and easy to read, making a great bike even better.
FEATURES
| PRODUCT WEIGHT | 114 lb (52 kg) |
|---|---|
| SHIPPING WEIGHT | 126 lb |
| PRODUCT FOOTPRINT (LXWXH) | 43.5 in x 20 in x 46 in (110 cm x 51 cm x 117 cm) |
| MAX PRODUCT LENGTH | 43.5 in (110 cm) |
| SHIPPING DIMENSIONS (LXWXH) | 44 in x 11 in x 38 in |
| FRAME MATERIAL | Steel |
| FRAME FINISH | E- Coated & Powder Coated |
| FRAME COLOR | Black |
| DRIVE SYSTEM | Chain |
| RESISTANCE SYSTEM | Direct Pressure |
| Q-FACTOR | 168 mm |
| HANDLE BAR | IC |
| SADDLE | SC saddle |
| FORE/AFT ADJUSTMENT SYSTEM | Pop-Pin, seat only |
| HEIGHT ADJUSTMENT SYSTEM | Pop-Pin |
| FLYWHEEL | Heavy Perimeter- Weighted |
| PEDALS | Athletic shoe cage, 9/16 threaded |
| USER HEIGHT RANGE | 4 ft 11 in to 6 ft 8 in (150 cm to 203 cm) |
| MAX USER WEIGHT | 350 lb (159 kg) |
COMPATIBLE CONSOLES
| ECHELON2G | NA |
|---|---|
| ECHELON2 | NA |
| ECHELON2 FOR 4IIII(R) | NA |
| ECHELON2 WITH POWER UPGRADE | NA |
| CADENCE PRO | 700-0008 |
COMPATIBLE ACCESSORIES
| PEDALS | 740-8825 |
|---|---|
| BIKE NUMBERING TAGS | 718-5943-35 |
| DUMBBELL HOLDERS | NA |
| POWERMETER CRANKS | 718-5766 |
| MOTOSUMO PHONE HOLDER | 700-0475 |
